Description of the product

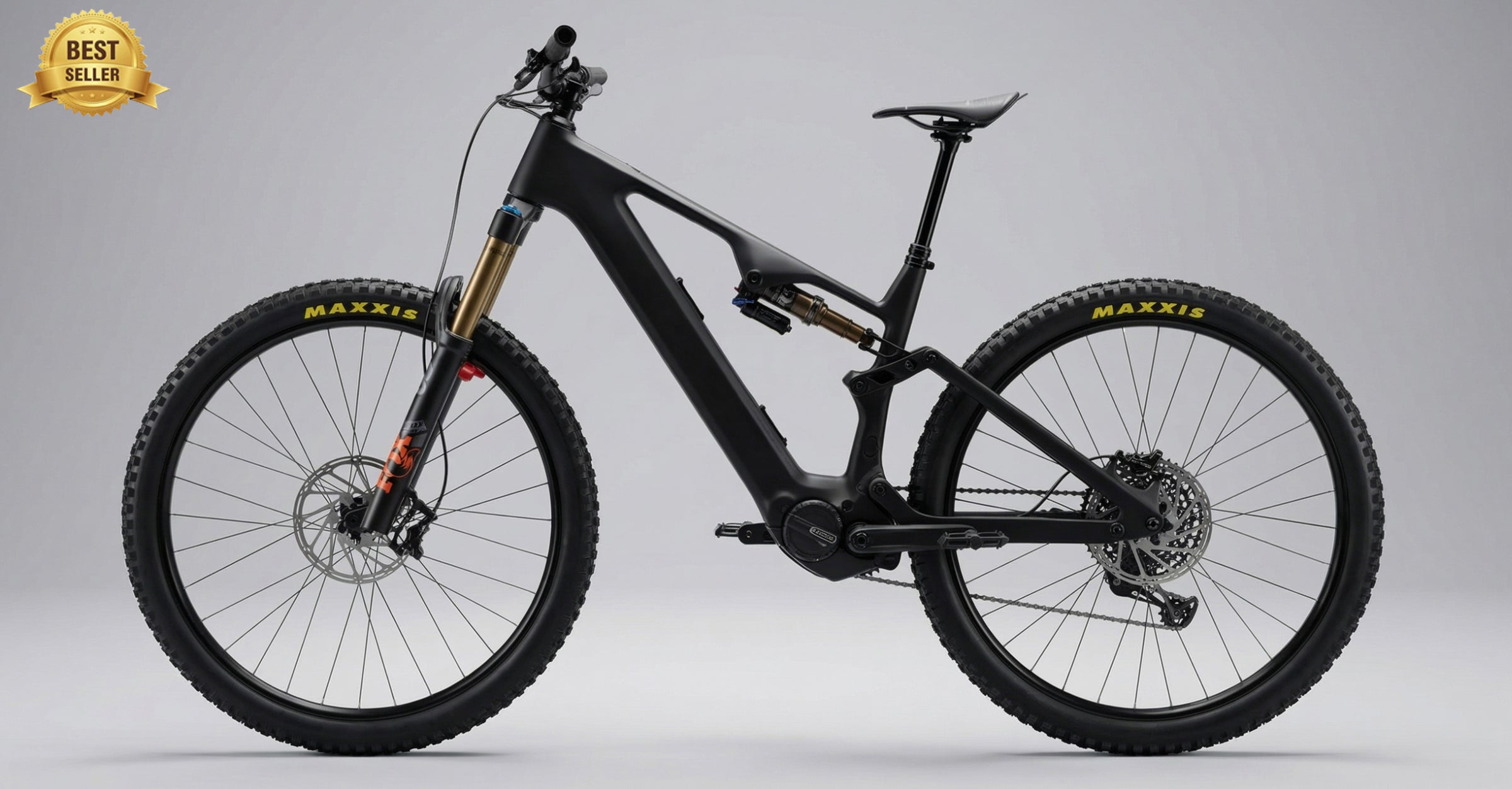

4LEAF CEF69 Specification
| Category | Component | PLUS | FOX |
|---|---|---|---|
| Frameset | Frame | TORAY T700/800 carbon fiber, 180mm travel, internal/external routing, post mount disc brake, 148x12 thru axle. | |
| Fork | Rockshox ZEB 180mm fork/ DOMAIN GOLD fork | FOX 38 fork 180mm travel | |
| Seat post | EXA 900i dropper post, ø 31.6mm, 125/ 150mm travel. | ||
| Headset | 1 1/8"-1 1/2" | ||

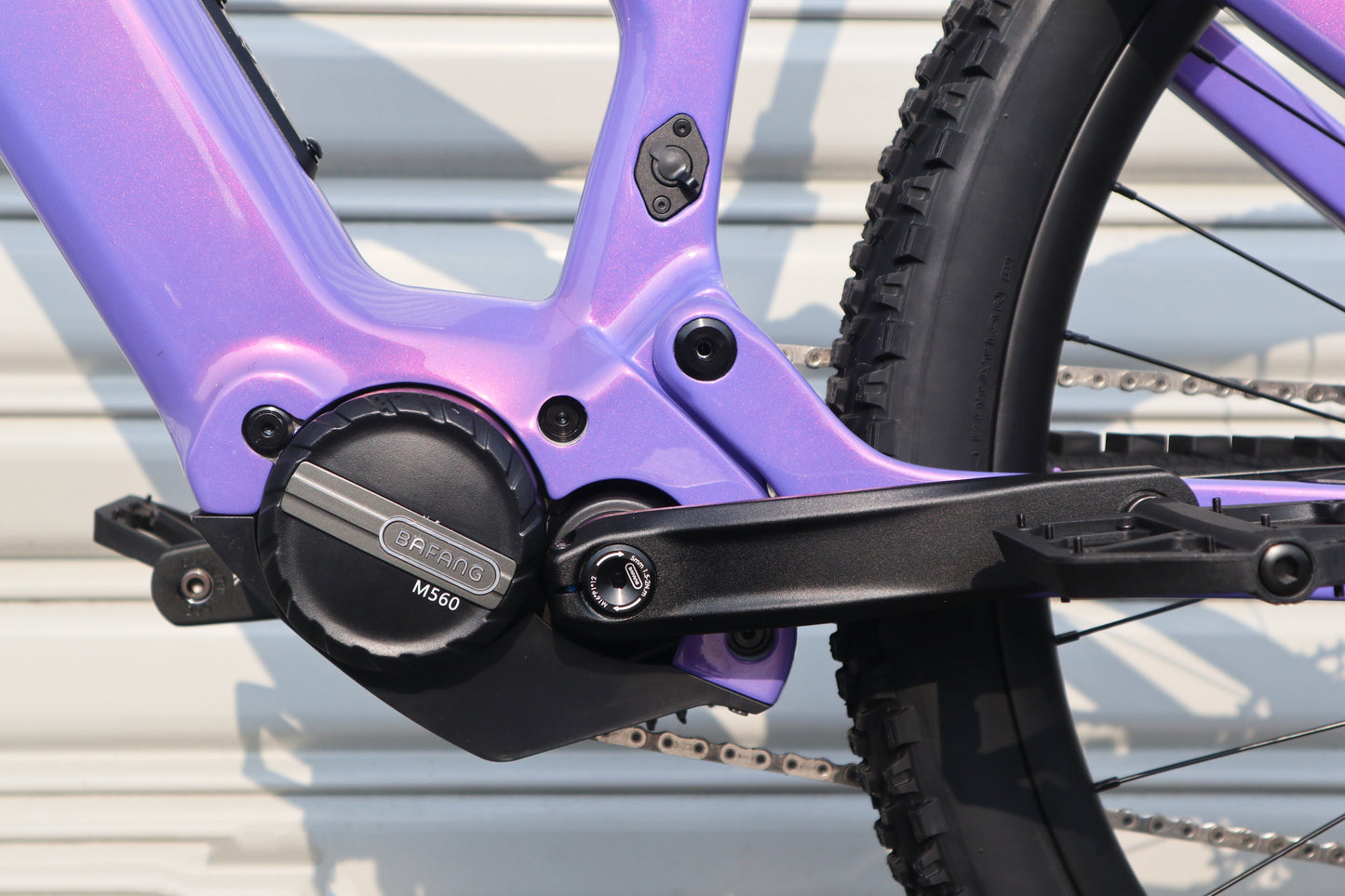

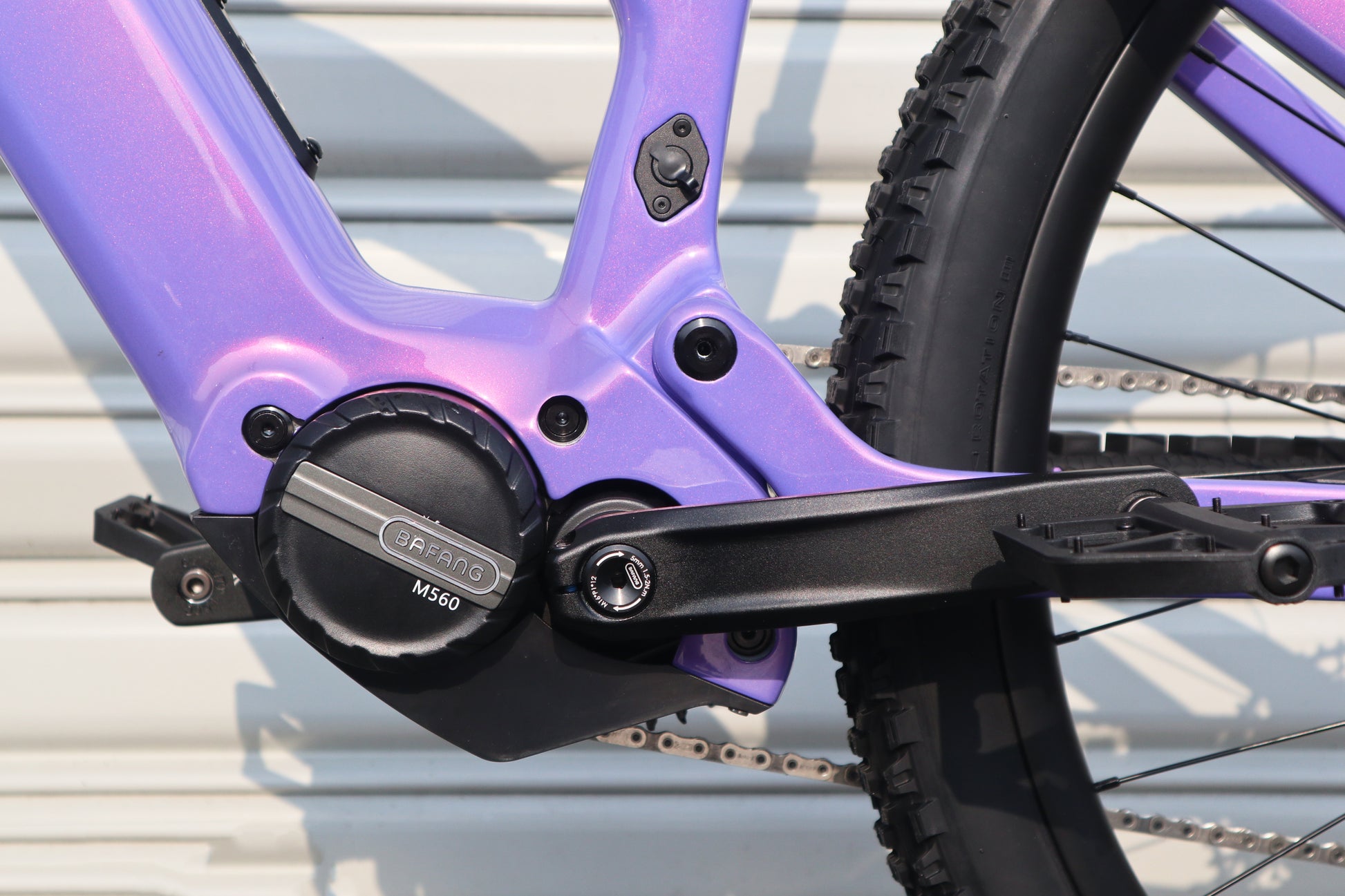

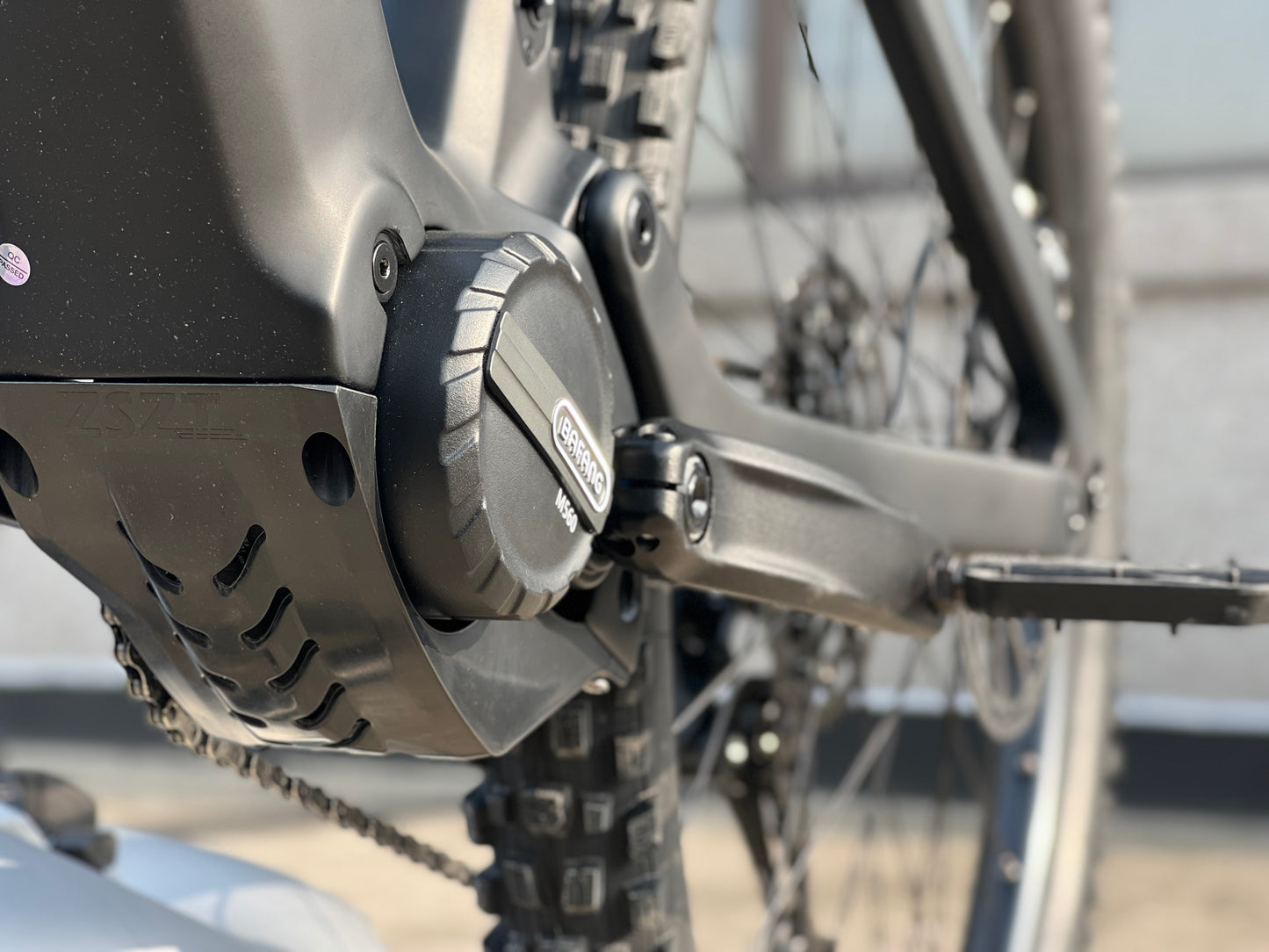

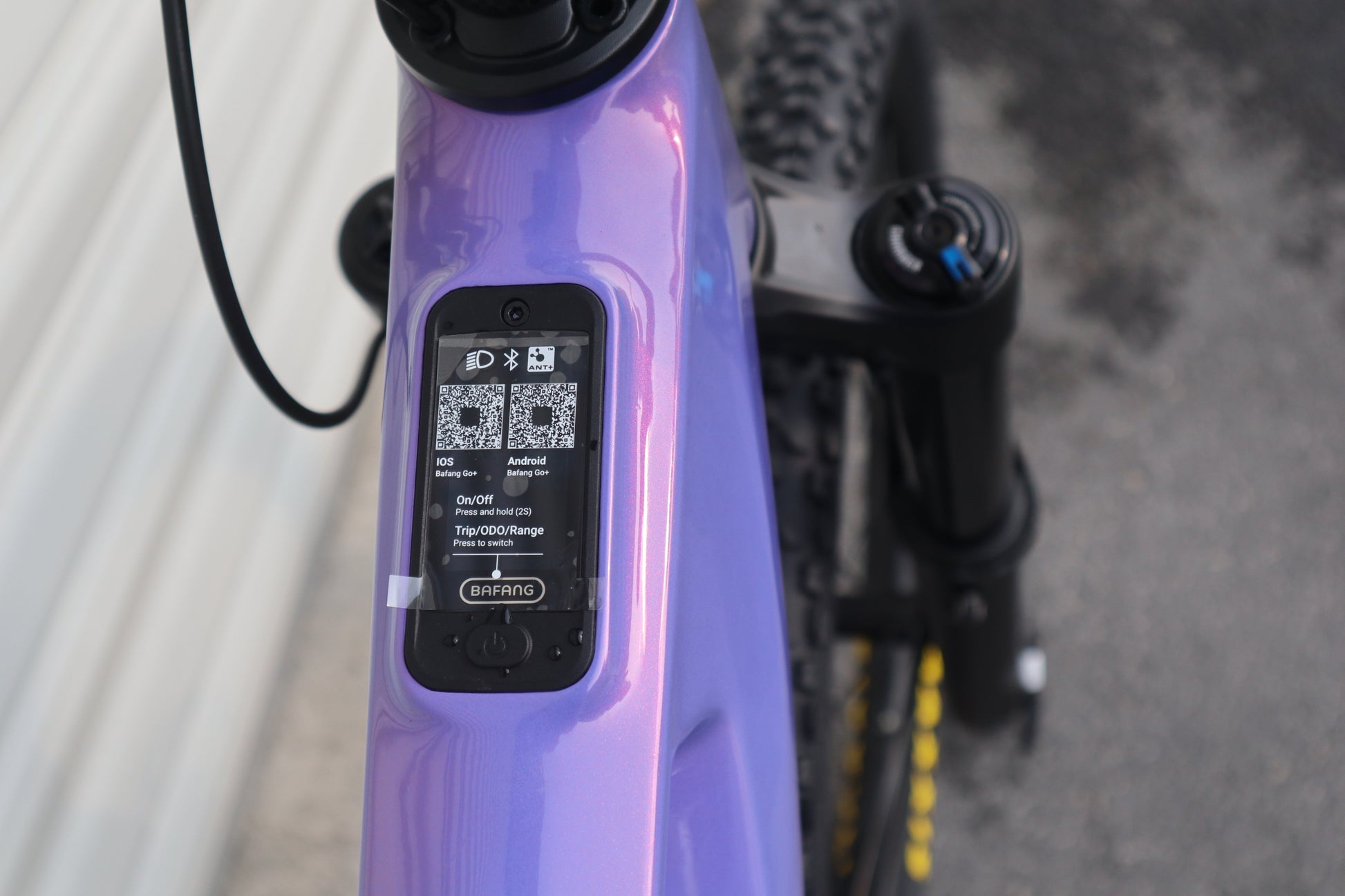

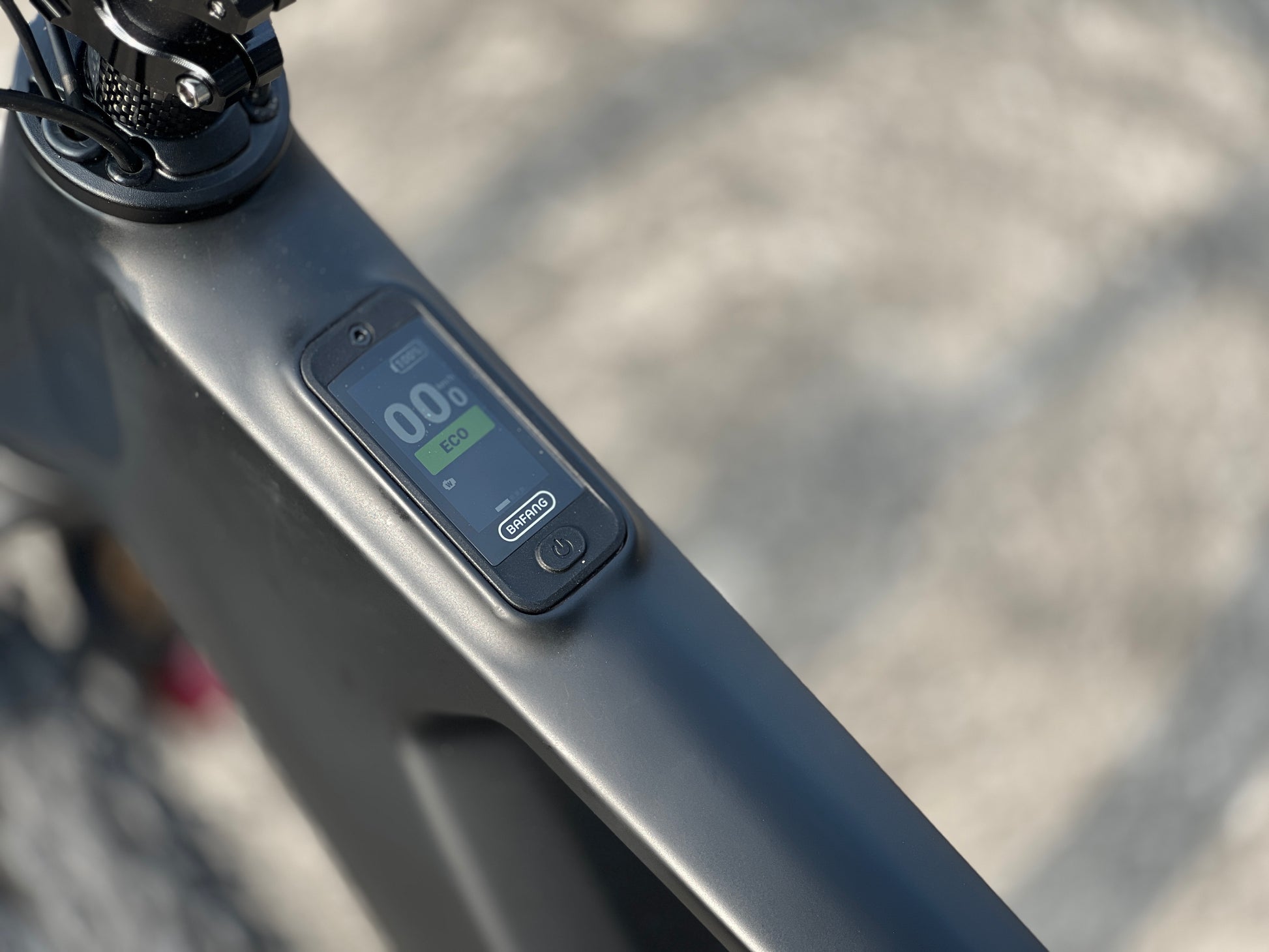

| Motor | Motor | BAFANG M510/M560 250/500/750W 48V with BAFANG DCP 030 intergrated display. | |
| Sensor | Torque sensor | ||
| Battery | Lithium-ion LG/Samsung cells 48V 17.4Ah 835Wh | 48V 17.4Ah 835Wh+ range extender 48v 5.8Ah 280Wh= 1113Wh | |
| Drivetrain | Thumb throttle | twist/thumb throttle | |
| Rear Derailleur | SHIMANO cues U6000 | ||
| Front Derailleur | W/O | ||
| Crankset | Prowheel/BAFANG 170mm 36T. | ||
| Cassette | Shimano U6000 11-51T 11 Speed. | ||
| Shifters | Shimano U6000. | ||

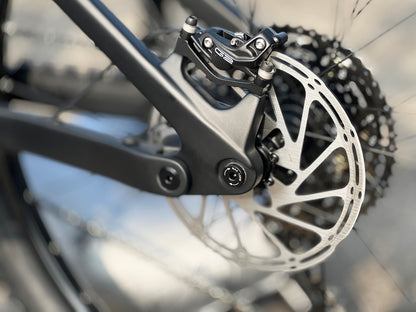

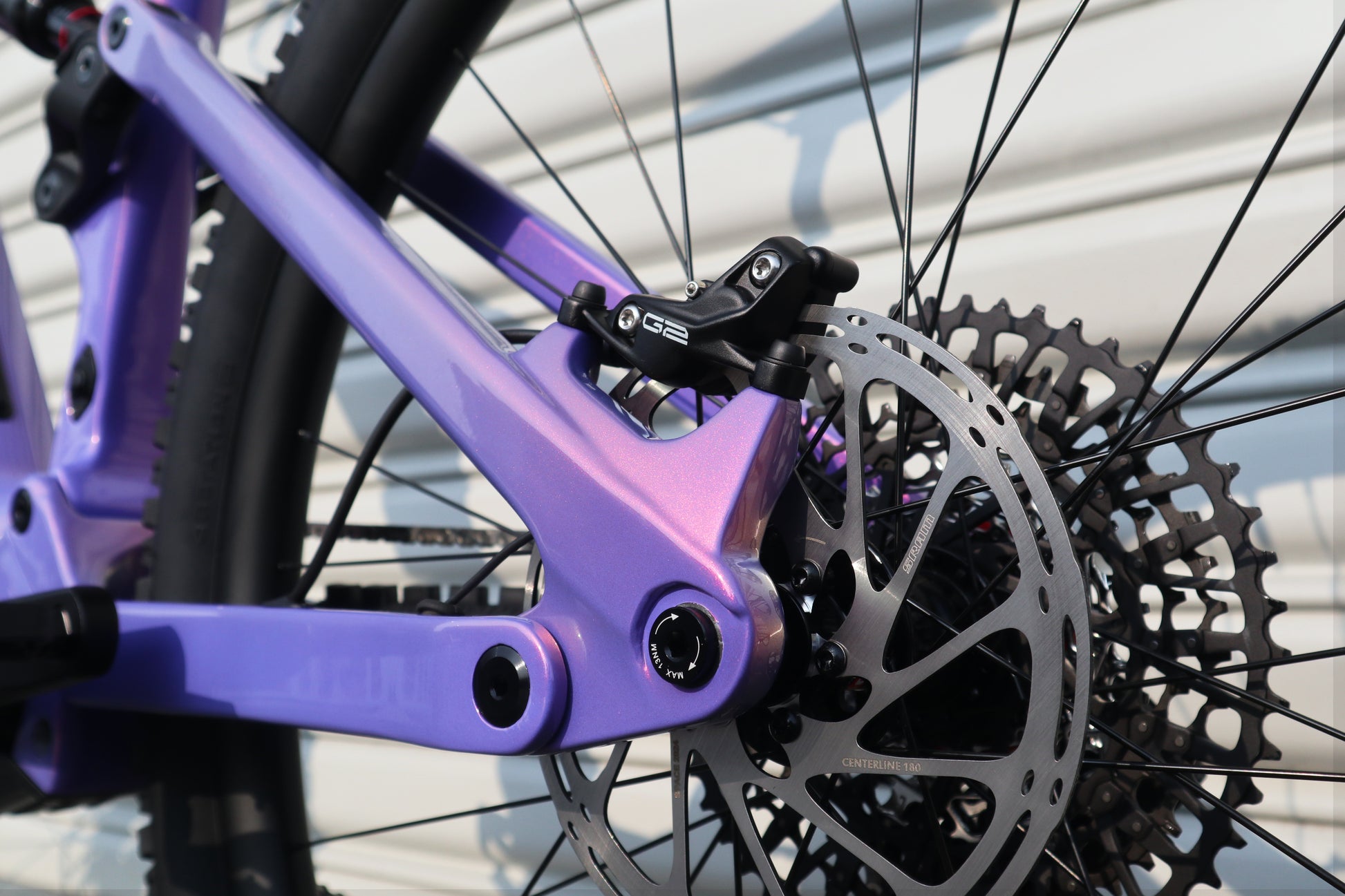

| Brakes | SRAM G2r 4 Piston Brakes. | ||
| Chain | KMC 11S 136 links. | ||
| Wheelset | Rotor | Disc size: Sram 203mm Centerline. | |
| Wheels | 29er/27.5 Aluminum Alloy+M-tech Hub. | ||
| Tyre | SCHWALBE NOBBY NIC tubeless ready 29erx2.6"/ 27.5erx2.8". | ||

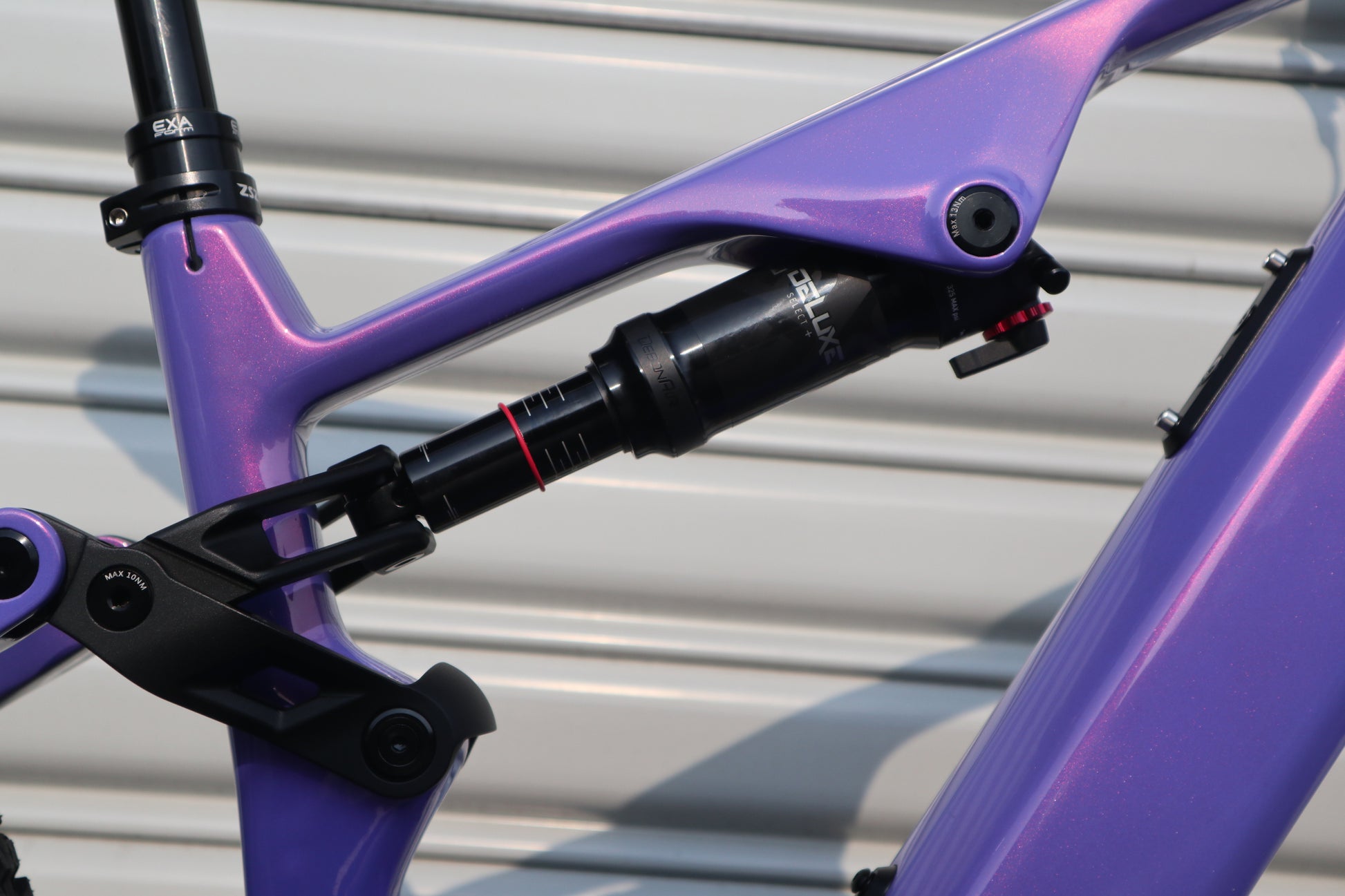

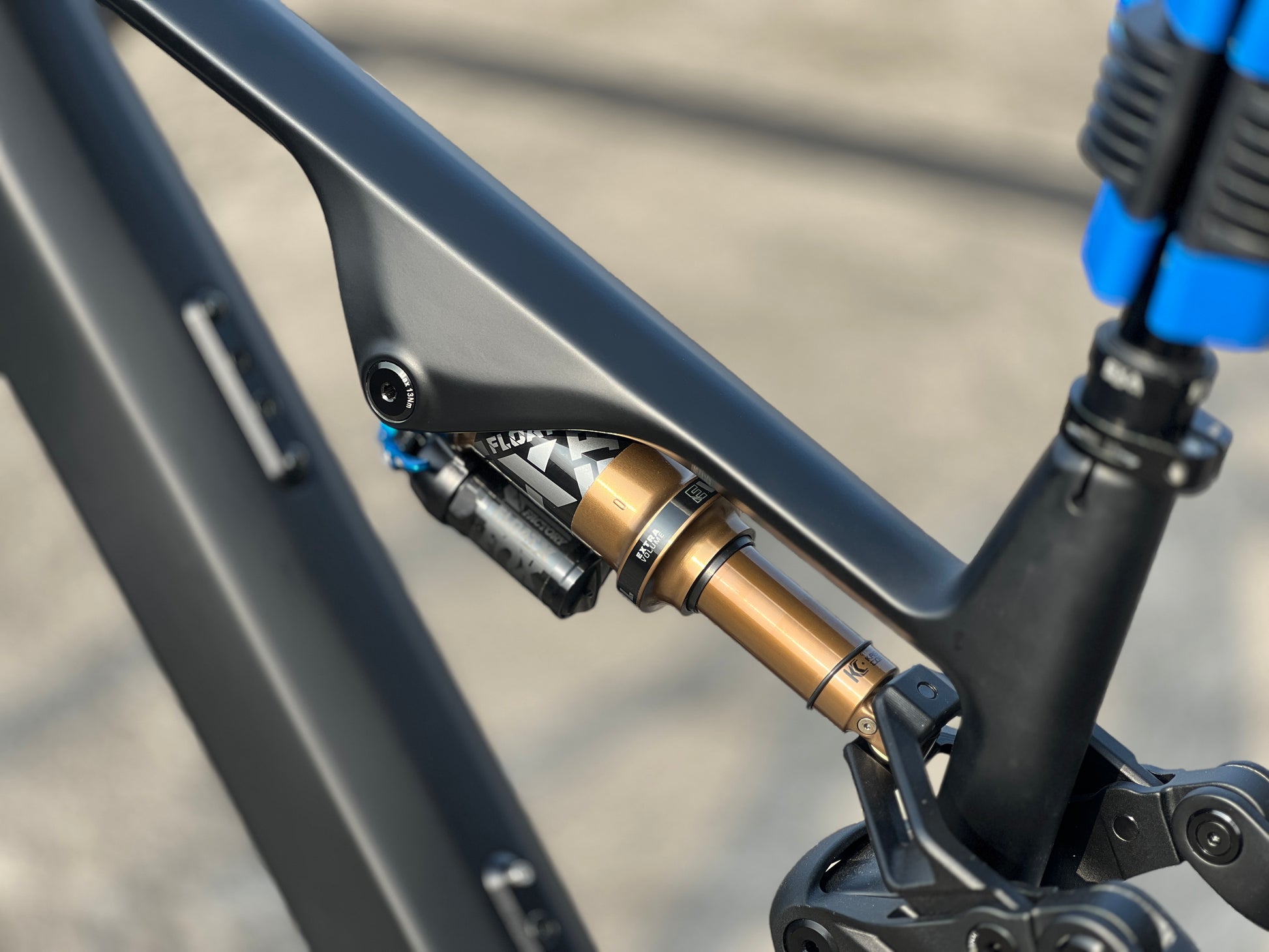

| Components | Rear Shock | ROCKSHOX deluxe sel+RT 205*57.5mm. | FOX FLOAT X factory painting 205*55mm. |
| Handlebar | Aluminum Riser Handle 780mm. | ||
| Saddle | PU leather + GEL + high-density sponge. | ||
| Pedal | Fiber-reinforced nylon pedals. | ||
4LEAF CEF69-Geometry
| 16"(S) | 17.5"(M) | 19"(L) | |
|---|---|---|---|
| Seat tube | 395 | 410 | 440 |
| TT | 580 | 605 | 632 |
| Chainstay length | 450 | 450 | 450 |
| HA | 64.5º | 64.5º | 64.5º |
| SA | 76.9º | 76.8º | 76.8º |
| BB | 20 | 20 | 20 |
| HT | 105 | 115 | 125 |
| Offset | 42 | 42 | 42 |
| Reach | 435 | 465 | 483 |
| Stack | 625 | 634 | 643 |
| FC | 769 | 803 | 826 |
| Seatpost | 210 | 240 | 260 |
| WB | 1218 | 1252 | 1275 |
| Recommended Height | 155-165cm | 165-176cm | 177-188cm |
Additional Parameters
- Weight 23 kg
- Dimensions /
- Wheel Size 27.5er, 29er
- Frame Color Matt Black
- Level PLUS, FOX
- Frame Size 16"(S), 17.5"(M), 19"(L)
- 4LEAF Logo Stickers available
4LEAF CEF69-Upgrade
| Upgrade options | Cost (USD) |
|---|---|
| Carbon wheels | 300 |
| Enduro Carbon Handlebar | 40 |
| Carbon Seatpost | 40 |
| Titanium paddle | 50 |
| Color painting (customize) | 200 |

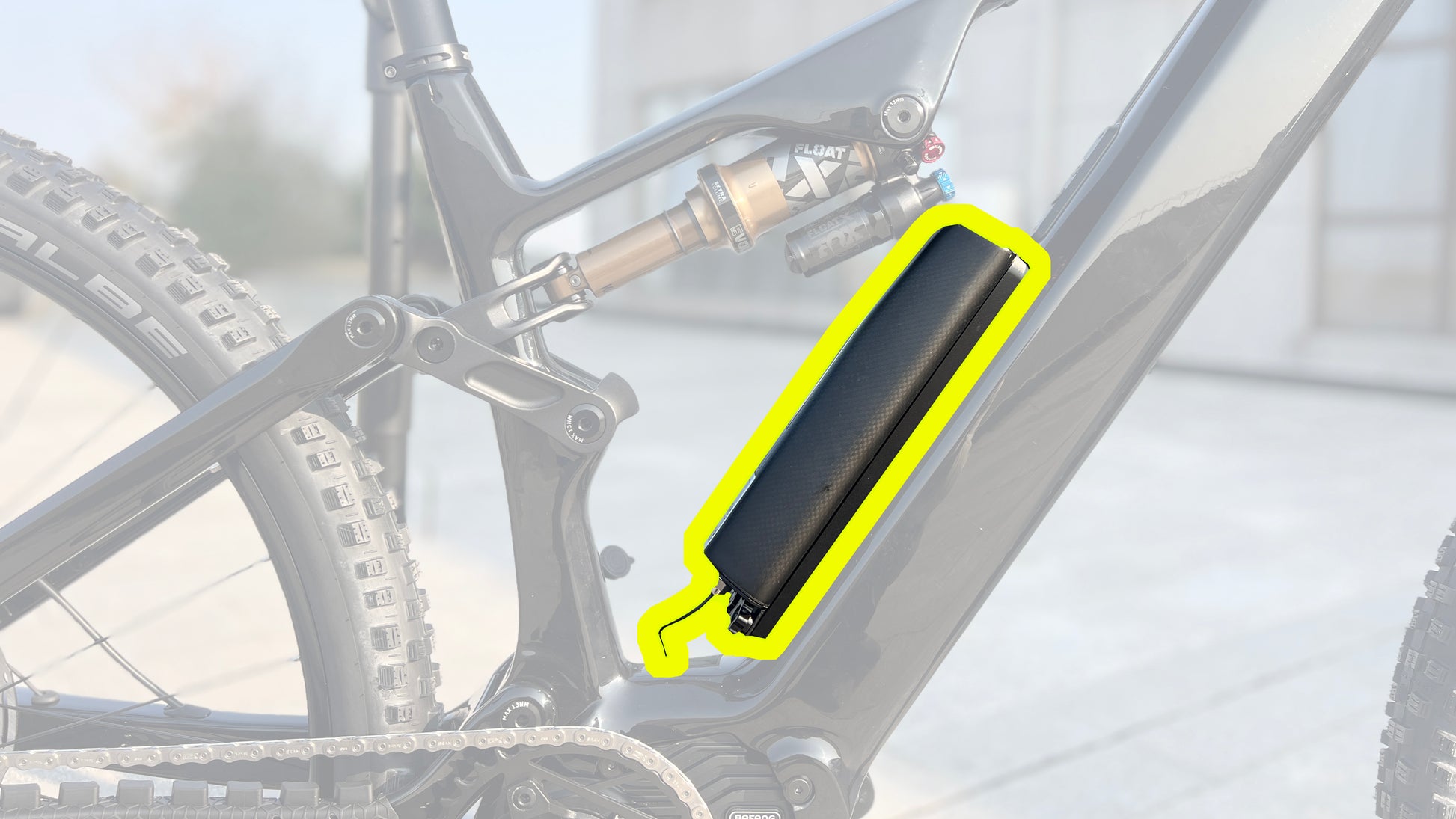

| 48V 5.8ah range extender | 350 |
| Sram GX AXS wireless 12 speed derailleur | 700 |
