R02 Lightweight Road Bike Frame

R02 Lightweight Road Bike Frame

$499.00 USD
$799.00 USD $499.00 USD
Sale Ausverkauft
Versand wird beim Checkout berechnet
Color
Size

More Payment Options (only recommended by 4LEAF)

Free Worldwide Shipping

Vollständige Details anzeigen

Description of the product

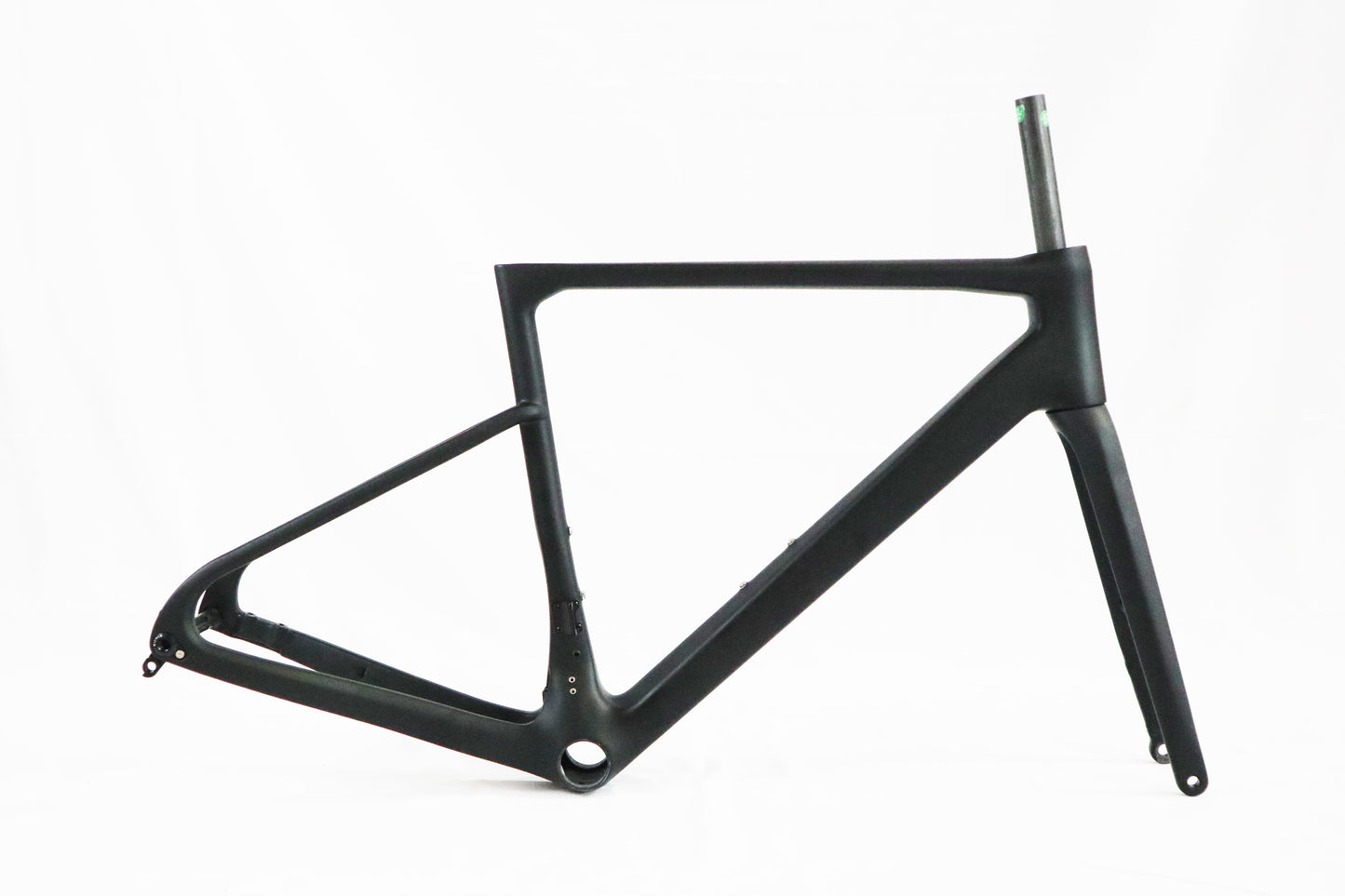

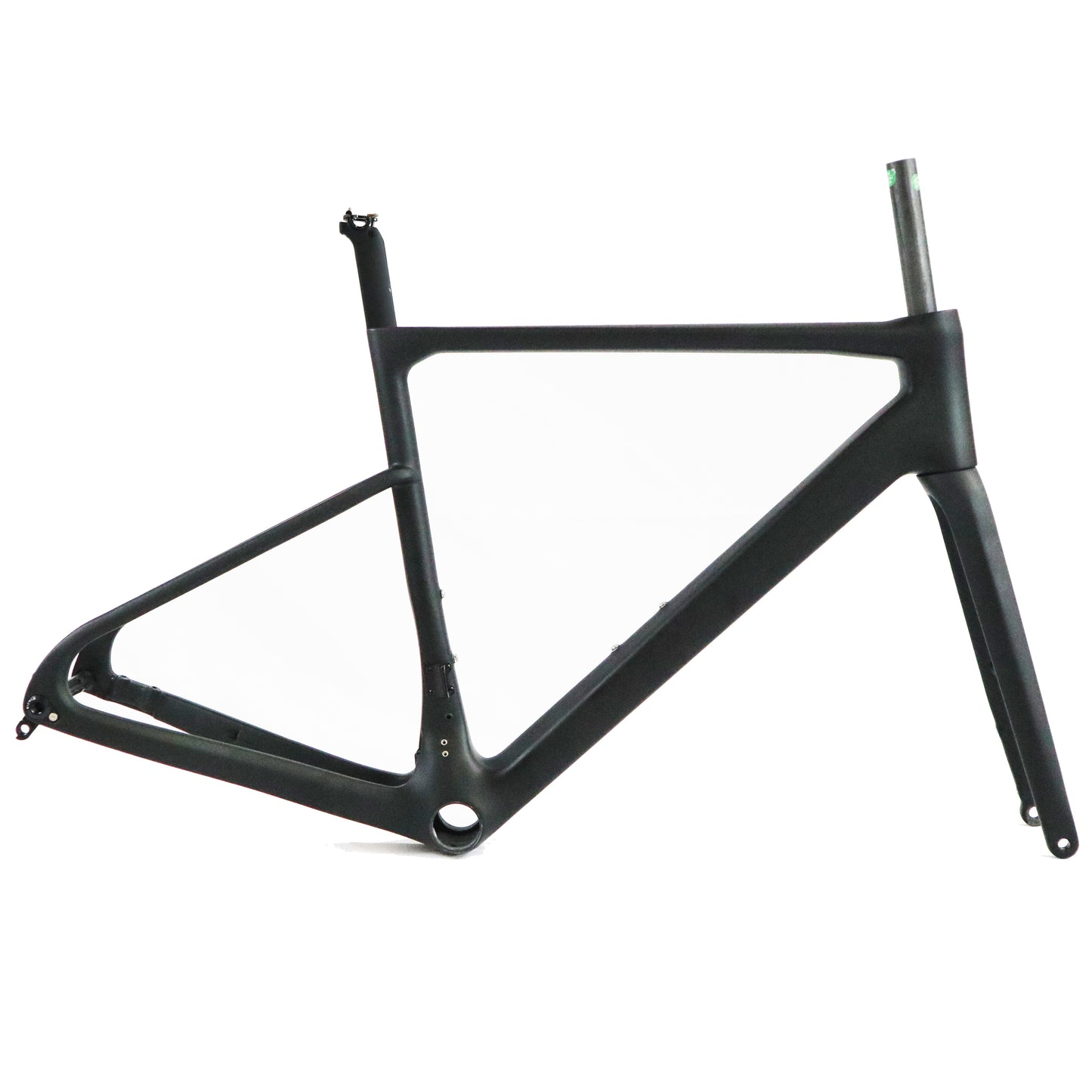

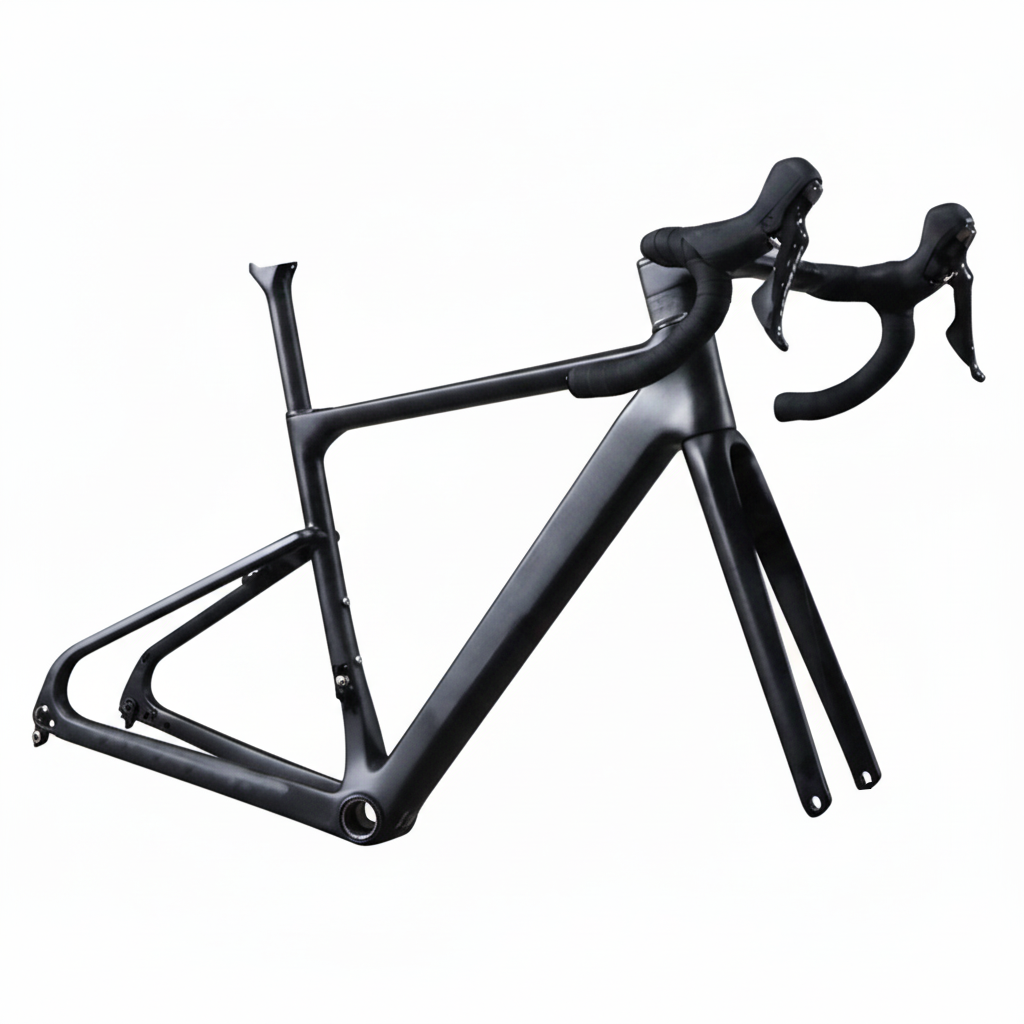

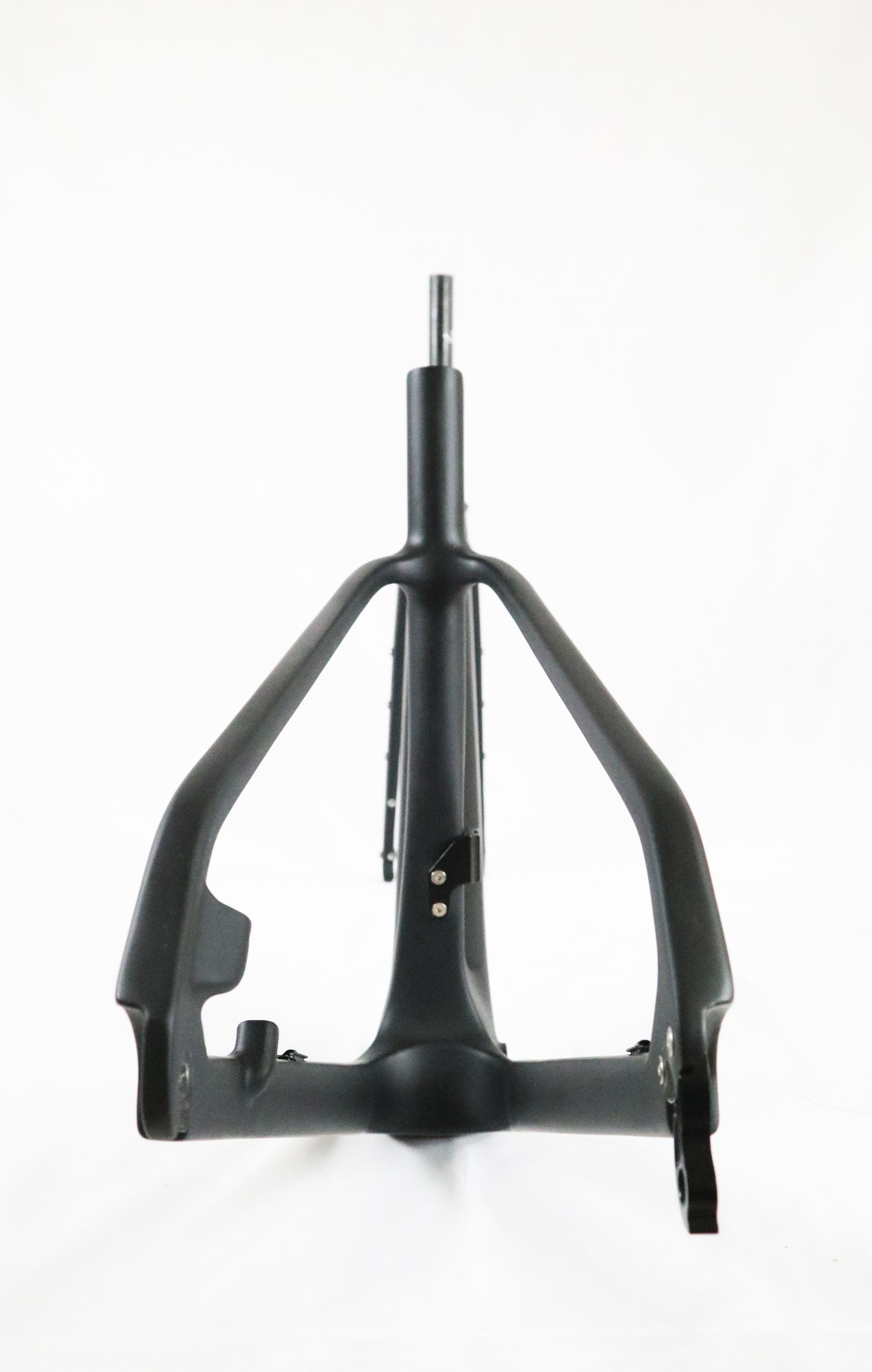

  1. The frameset includes carbon frame/post/handlebar
  2. Size ranges from XS/S/M/ML/L/XL. XL is suitable for the rider over 195cm

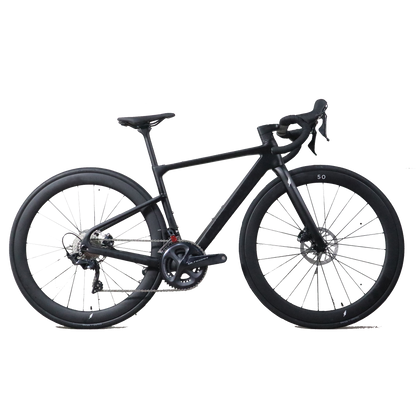

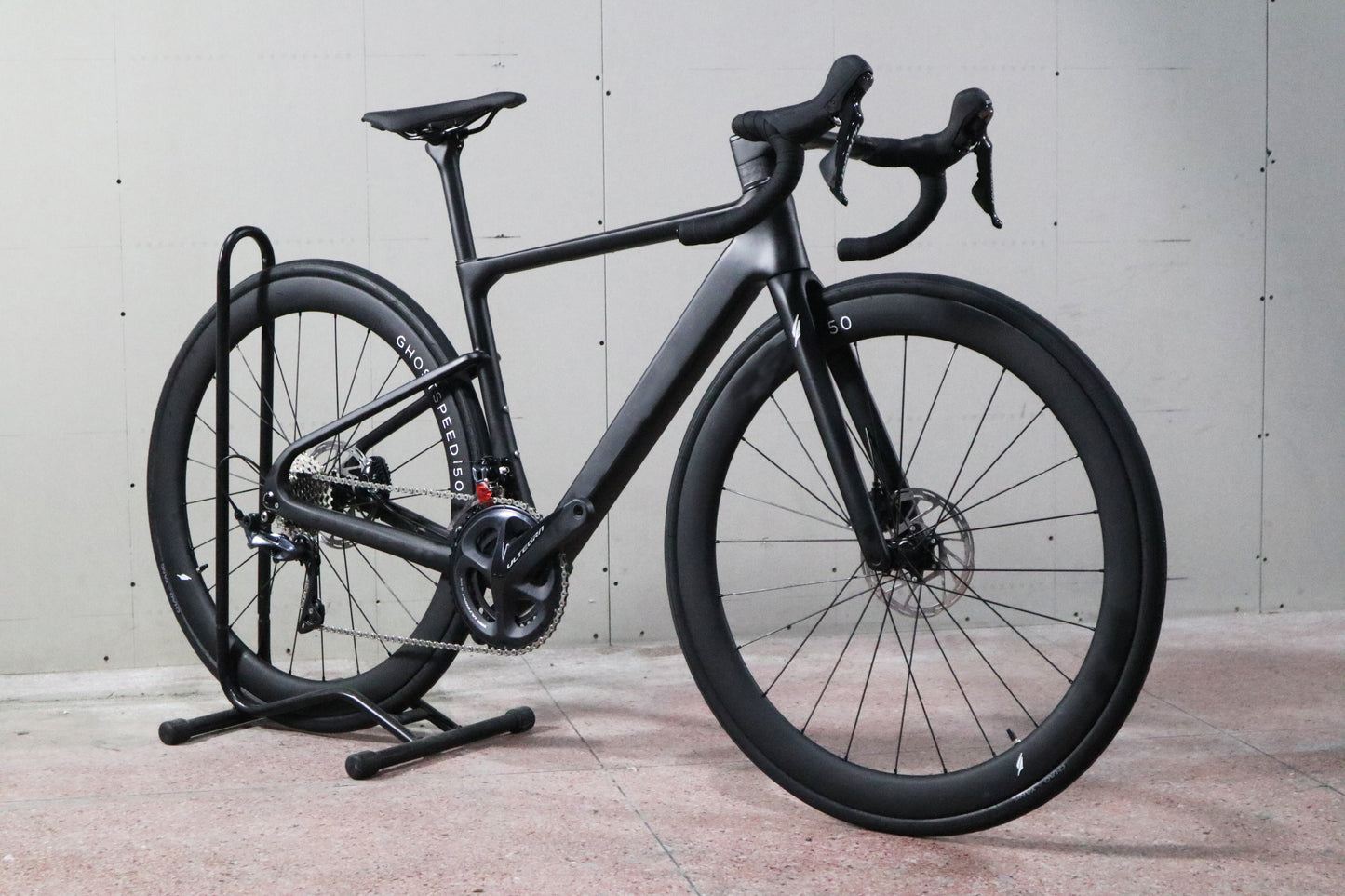

  3. Complete bike could be offered, which comes with Sensah/Wheeltop/Shimano groupset (Mechanical // Wireless version)
  4. ODM service is available. MOQ comes to 10 units only.

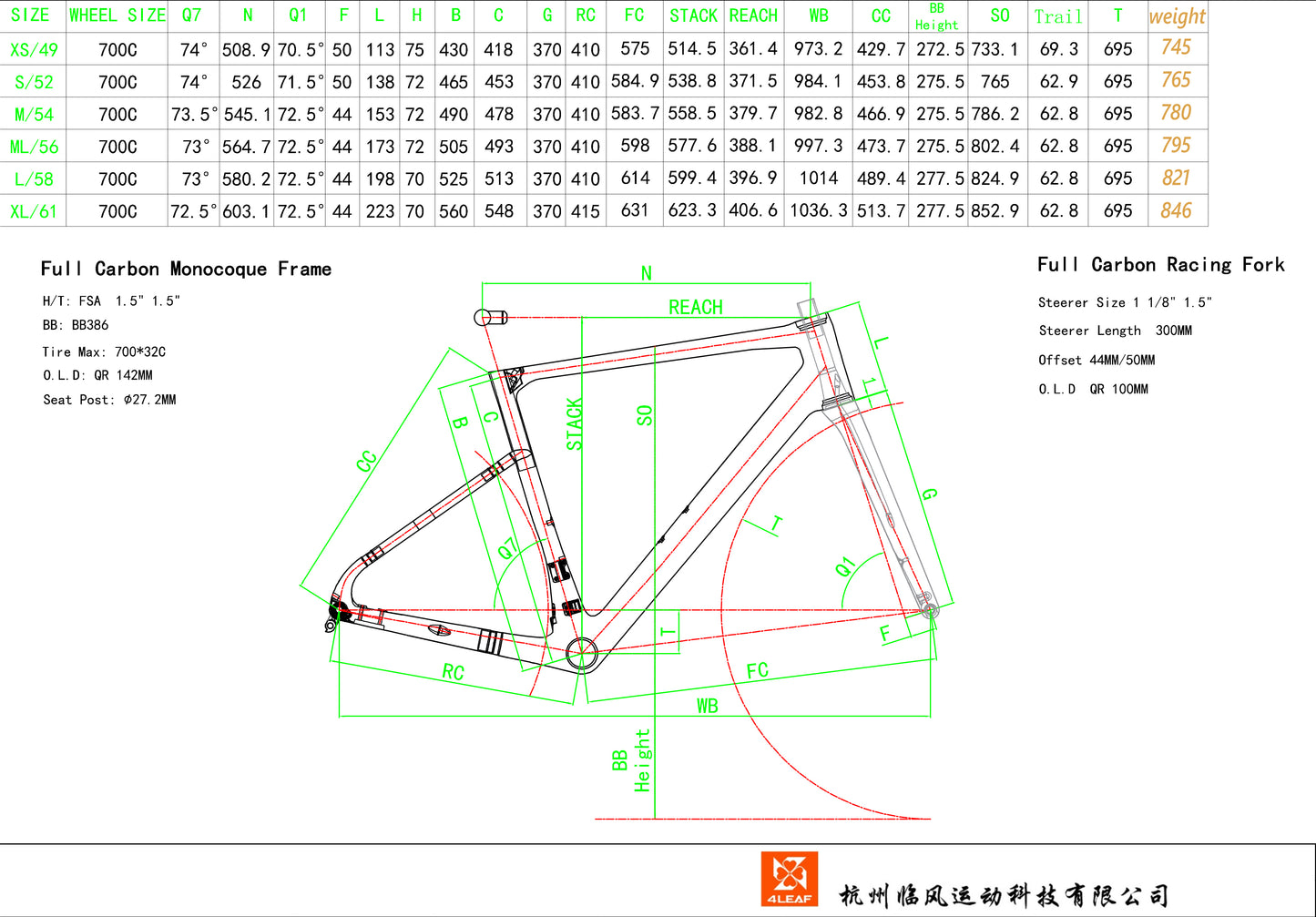

SIZE XS/42 S/45 M/48 ML/49 L/51 XL/55
WHEEL SIZE 700C 700C 700C 700C 700C 700C
Q7 74 74 73.5 73 73 72.5
N 508.9 526 545.1 564.7 580.2 603.1
Q1 70.5 71.5 72.5 72.5 72.5 72.5
F 50 50 44 44 44 44
L 113 138 153 173 198 223
H 75 72 72 72 70 70
B 430 465 490 505 525 560
ST 418 453 478 493 513 548
G 370 370 370 370 370 370
RC 410 410 410 410 410 415
FC 575 584.9 583.7 598 614 631
STACK 514.5 538.8 558.5 577.6 599.4 623.3
REACH 361.4 371.5 379.7 388.1 396.9 406.6
WB 973.2 984.1 982.8 997.3 1014 1036.3
CC 429.7 453.8 466.9 473.7 489.4 513.7
BB Height 272.5 275.5 275.5 275.5 277.5 277.5
SO 733.1 765 786.2 802.4 824.9 852.9
Trail 69.3 62.9 62.8 62.8 62.8 62.8
T 695 695 695 695 695 695
