Description of the product

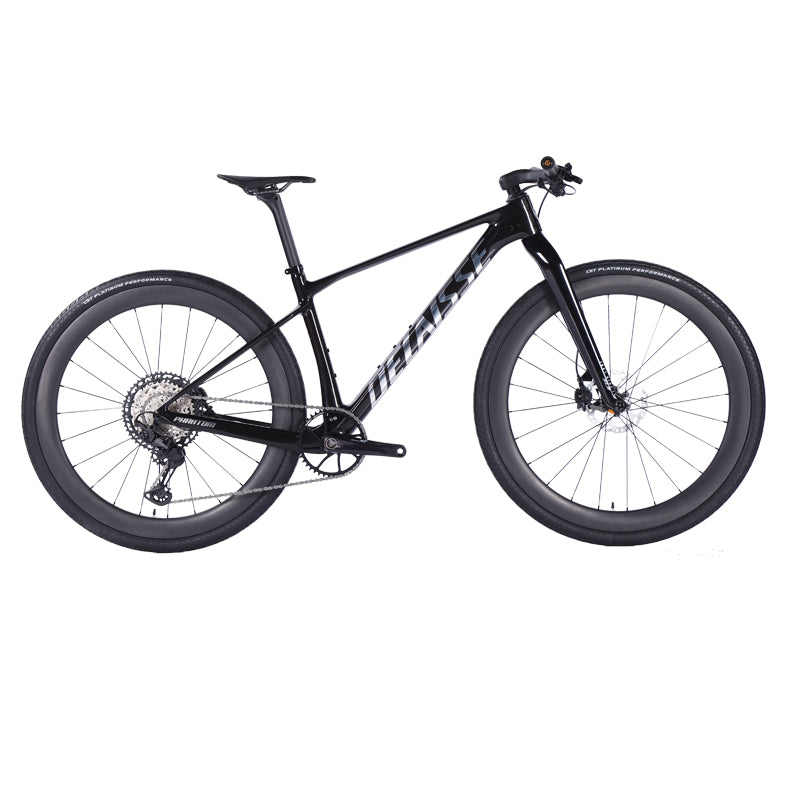

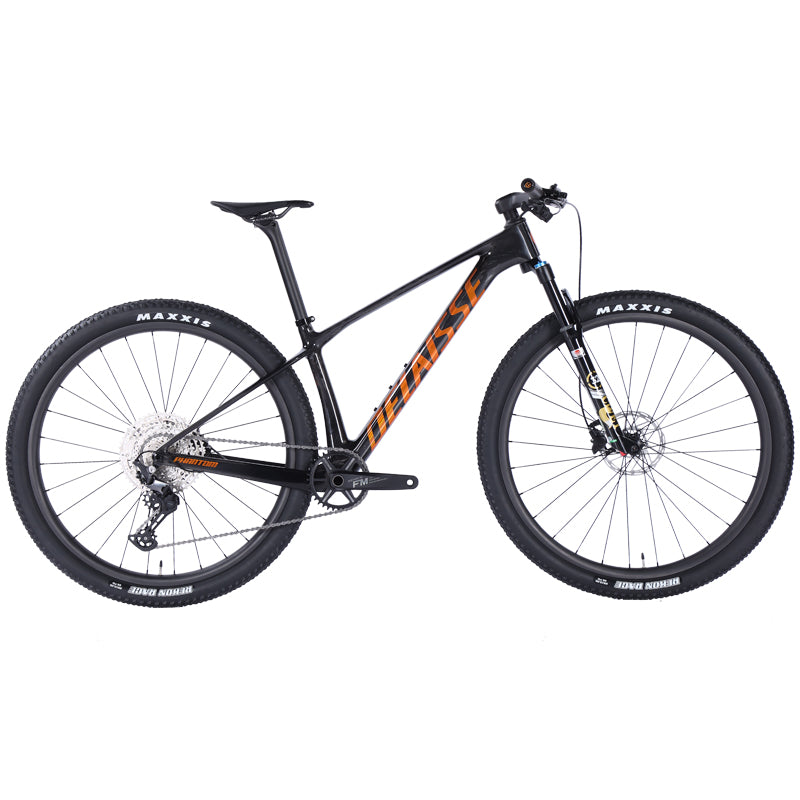

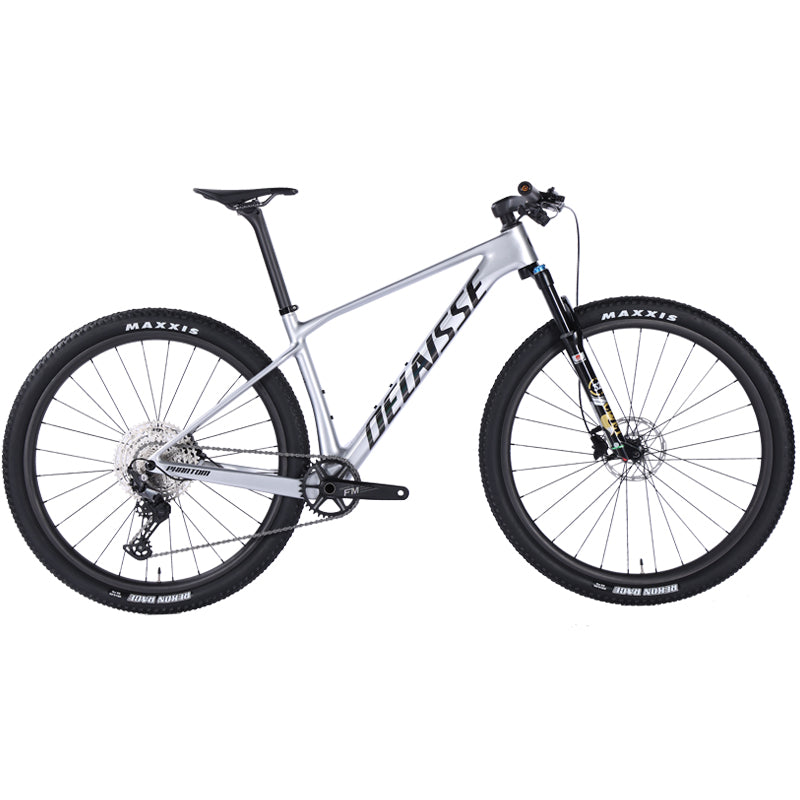

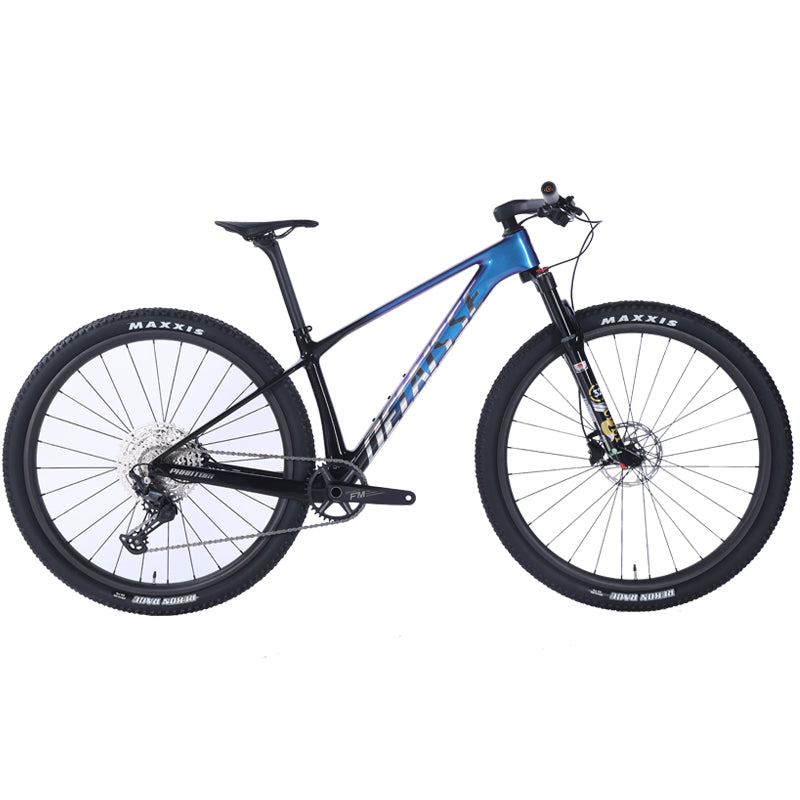

Phantom is one of the best hot-sale 29*2.4'' carbon MTB, weight at 11.5kg or less
- Size in S/M/L
- 425mm Chainstay
- EHTG patented stacking tech
- Symmetrical rear upper stays
Shipment will be arranged within 7 business days.
| GEOMETRY PARAMETER | S | M | L | |
|---|---|---|---|---|
| A | HEAD TUBE ANGLE (+0.6° HEADSET SETTING) | 67.9 ° | 67.9 ° | 67.9 ° |
| B | HEAD TUBE LENGTH | 90.0 MM | 95.0 MM | 110.0 MM |
| C | TOP TUBE HORIZONTAL | 575.0 MM | 600.2 MM | 626.0 MM |
| D | STANDOVER HEIGHT | 752.0 MM | 781.0 MM | 800.0 MM |
| E | BB OFFSET | -62.0 MM | -62.0 MM | -62.0 MM |
| F | BB HEIGHT | 313.0 MM | 313.0 MM | 313.0 MM |
| G | WHEEL BASE | 1,105.4 MM | 1,131.1 MM | 1,158.0 MM |
| I | BB CENTER TO TOP OF SEAT TUBE | 390.0 MM | 440.0 MM | 480.0 MM |
| J | SEAT ANGLE | 75.4 ° | 75.4 ° | 75.3 ° |
| K | CHAINSTAY | 425.0 MM | 425.0 MM | 425.0 MM |
| L | REACH | 418.5 MM | 442.3 MM | 463.6 MM |
| M | STACK | 600.3 MM | 604.9 MM | 618.9 MM |
| N | STEM LENGTH | 50.0 MM | 60.0 MM | 70.0 MM |
| O | TRAIL | 105.1 MM | 105.0 MM | 105.0 MM |
| Component | Model |
|---|---|
| Frame | S/M/L |
| Front Fork | DELAISSE 32（Remote Lockout） |
| Headset | 52-52 |
| Stem | DELAISSE |
| Handlebar | DELAISSE |
| Grip | Rubber Grip |
| Seatpost | DELAISSE 31.6 |
| Crankset | Senicx FC-XM2-A3 |
| Chainring | Senicx 34T-AL-7075 |
| Bottom Bracket | Senicx DUB Press-fit |
| Cassette | SHIMANO 6100 10-51T |
| Chain | SHIMANO 6100 |
| Shifter | SHIMANO 6100 |
| Rear Derailleur | SHIMANO 6100 |
| Brake | SHIMANO MT200 |
| Brake Rotor | IIIPRO 160mm |
| Shift Cable Housing | JAGWIRE |
| Tires | 29*2.4” MAXXIS |
