Description of the product

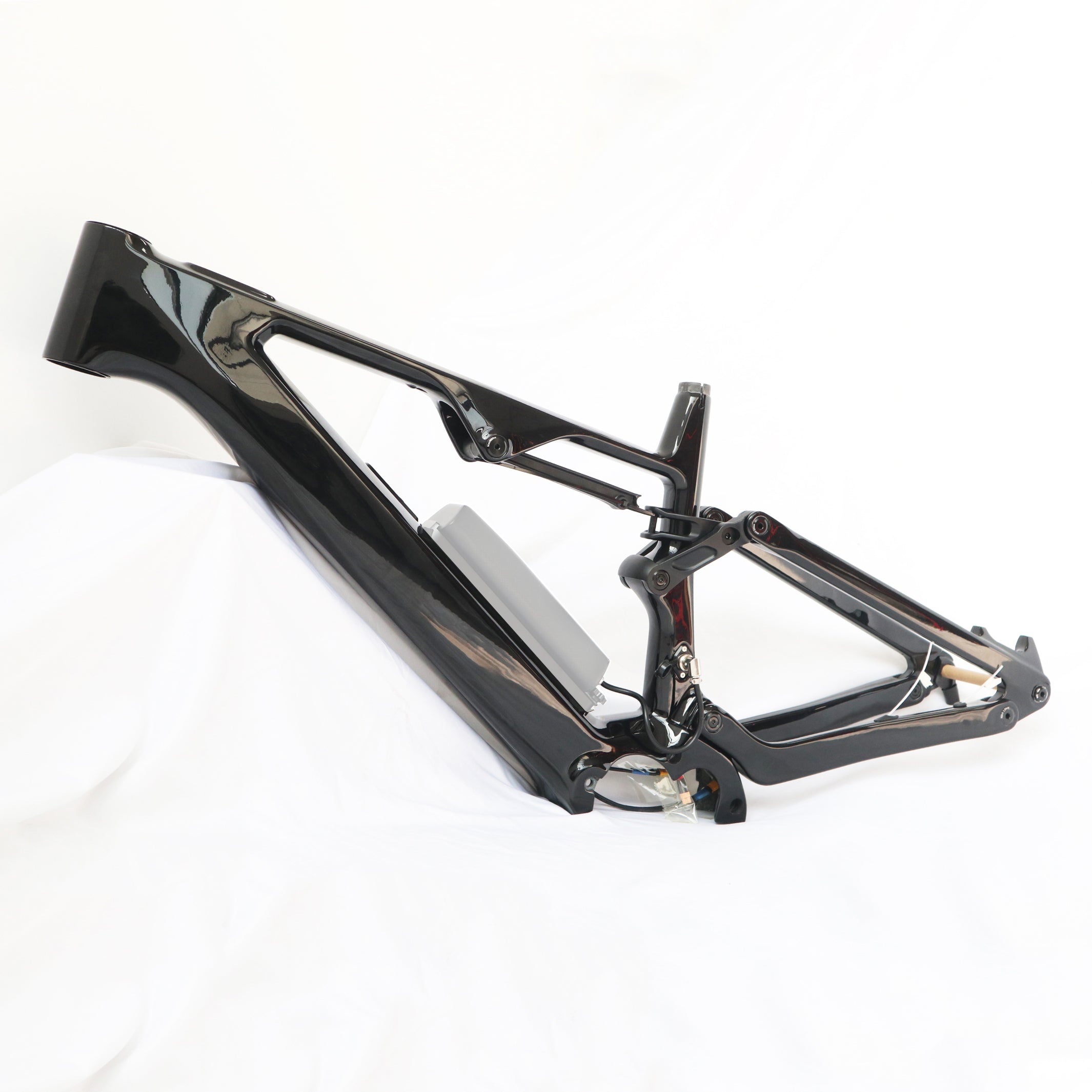

CEF69 frameset includes
- Carbon fiber frame
- BAFANG C030 display
- Bafang M510 48V250W or Bafang M560 48v 500/750w
- 48v 17.4AH/ 48v 10AH/ 48V 10AH (carbon)/ 48V 5.8AH(carbon)
- charger
- keys*2
- necessary cables
another 200USD Color painting （customize）
| Recommended height |
| 155 - 165 cm (size S) |
| 165 - 176 cm (size M) |
| 177 - 188 cm (size L) |
Weight of Frame: 2400g±40g Size（17")
Size:S/M/L
Material:Full Carbon
Headset-top: 52mm
Headset-down: 52mm
Brake model: Disc brake (180MM)
Maximum Tyre Model: 29 ER*2.6" 0R 27. 5 ER*2.8"
Axle Rear Shaft: 148MM*12
Shock Length: 210MM (Eye to Eye Length)
Shock Travel: 55-65MM
Front Travel: 170MM
Rear Travel: 150-170MM
Weave: UD
Motor: M820
| SIZE | S | M | L |
| ST | 395 | 410 | 440 |
| TT | 580 | 605 | 632 |
| RC | 450 | 450 | 450 |
| HA | 64.5° | 64.5° | 64.5° |
| SA | 76.9° | 76.8° | 76.8° |
| BB | 20 | 20 | 20 |
| HT | 105 | 115 | 125 |
| Offset | 42 | 42 | 42 |
| Reach | 435 | 465 | 483 |
| Stack | 625 | 634 | 643 |
| FC | 769 | 803 | 826 |
| Seatpost | 31.6*210 | 31.6*240 | 31.6*260 |
| Recommended height | 155 - 165 cm | 165 - 176 cm | 177 - 188 cm |
| SIZE | S | M | L |
